What’s US Type Drop Forged Turnbuckles?

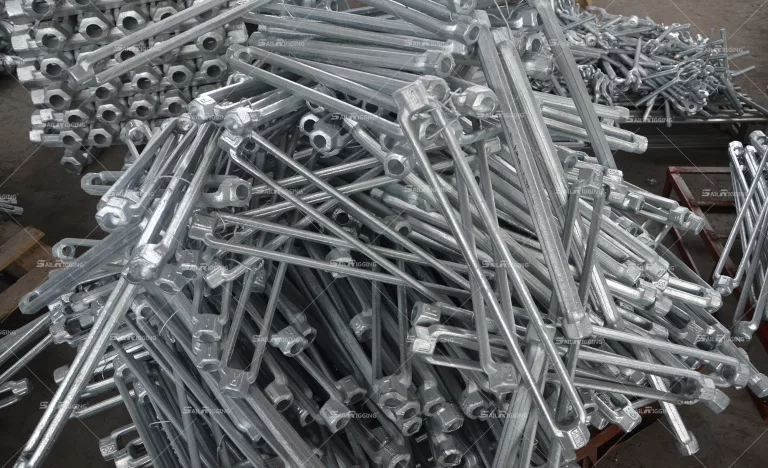

US Type Turnbuckle

Today we are talking about US Type Drop Forged Turnbuckles. US Type Drop Forged Turnbuckles are rigging devices specifically designed and manufactured to meet the rigorous safety and performance standards set by organizations like the ASME (American Society of Mechanical Engineers) and ASTM (American Society for Testing and Materials). These standards ensure that the turnbuckles can withstand heavy loads, operate reliably, and meet the required safety regulations in the U.S. and globally.

Turnbuckle Standards

  • ASME B30.26

This standard focuses on rigging hardware, including turnbuckles, and specifies safe practices, design criteria, and performance requirements. It covers topics like maximum working load, proof load testing, and durability under extreme conditions.

  • ASTM F1145

This specification outlines the general requirements for turnbuckles, ensuring they are manufactured with consistent materials, proper thread design, and reliable load ratings. It covers materials, dimensional tolerances, heat treatment, and finish to ensure optimal performance in tensioning and rigging applications.

Turnbuckle Types

US Type Drop Forged Turnbuckles come in various configurations to suit different rigging needs. There’re several different fitting of US type drop forged turnbuckles. The key types include:

  • Jaw & Jaw Turnbuckle

Jaw & Jaw turnbuckles feature two jaw-shaped end fittings, secured with a pin or bolt. These are ideal for applications where the turnbuckle needs to be quickly connected or disconnected from anchor points.

Applications: Common in marine environments, construction, and industrial settings where secure, detachable connections are needed.



  • Eye & Eye Turnbuckle

Eye & Eye turnbuckles have circular openings (eyes) at both ends, designed to be used with hooks, shackles, or other rigging equipment.

Applications: Used in applications where a permanent, non-detachable connection is required, such as in the tensioning of cables and rigging lines in construction or shipbuilding.



  • Hook & Hook Turnbuckle

Hook & Hook turnbuckles have hooks at both ends, allowing for quick attachment and release. They are ideal when a fast, temporary connection is needed.

Applications: Typically used in lighter-duty applications or temporary setups where frequent adjustments are necessary, such as securing tents or staging equipment.



  • Jaw & Eye Turnbuckle

Jaw & Eye turnbuckles combine one jaw and one eye fitting, offering versatility in connections where one end requires a detachable fitting and the other a permanent connection.

Applications: Often used in tensioning systems where both fixed and removable connections are needed, such as in structural supports and temporary rigging.



  • Hook & Eye Turnbuckle

Hook & Eye turnbuckles feature a hook at one end and an eye at the other, providing flexibility for situations where one end needs quick release and the other requires a more secure, permanent attachment.

Applications: Useful in temporary structures, construction projects, and light-duty tensioning needs.



US Type Drop Forged Turnbuckles are essential components in any rigging or tensioning system. Their drop forged construction guarantees durability, while their compliance with ASME and ASTM standards ensures safety and performance. Whether you need jaw & jaw for secure connections or hook & hook for easy attachment, US Type Turnbuckles provide the versatility, strength, and corrosion resistance for heavy-duty applications across industries.

For more information on US Type Drop Forged Turnbuckles, please visit our website or contact Sail Rigging.
