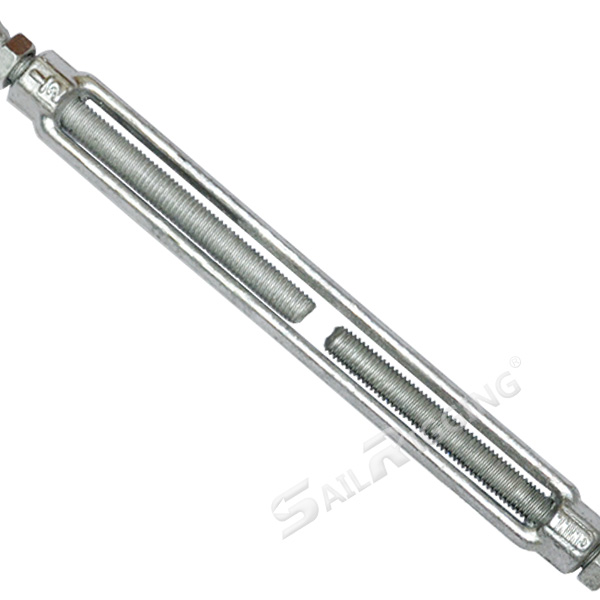

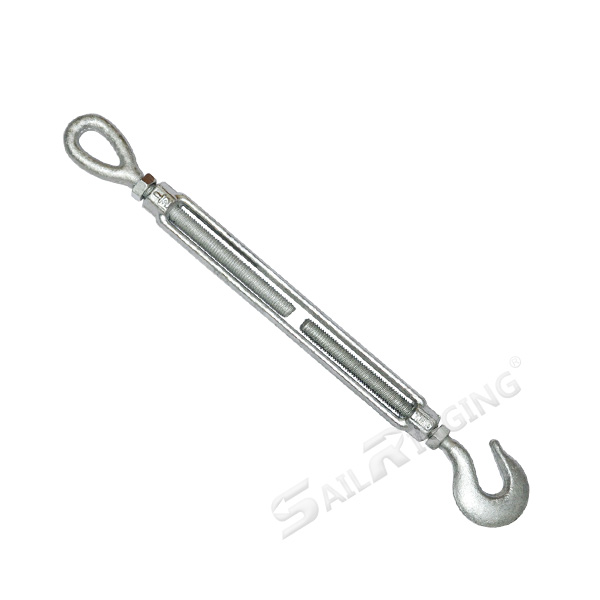

US TYPE TURNBUCKLE WITH HOOK & EYE

Feature:

Standard: US Standard
Material: 45# Carbon Steel

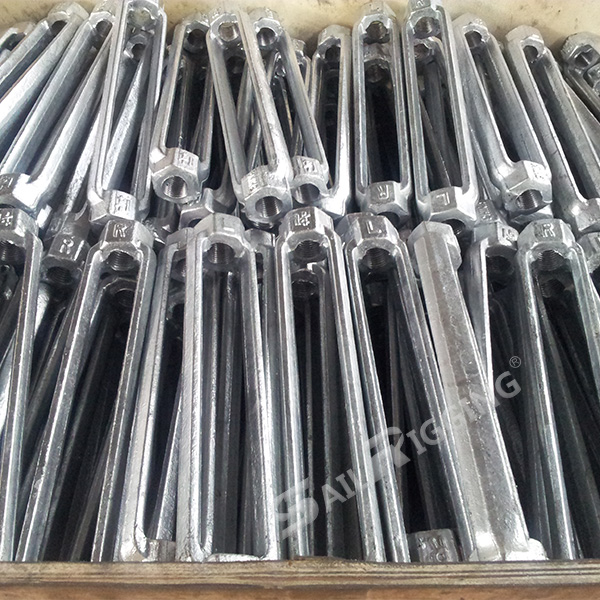

Technology: Drop Forged
Surface Finish: Hot Dip Galvanized
Ultimate Load: 5 times of the WILL

share to:

Product

Description

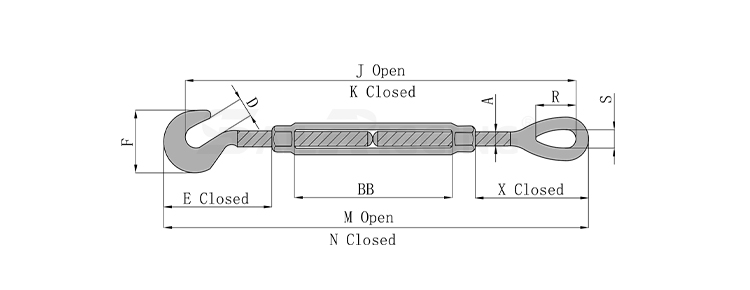

Size (in)	WLL (lbs)	Weight (lbs)	Dimensions(in)
Size (in)	WLL (lbs)	Weight (lbs)	A	D	E Closed	F	J Open	K Closed	M Open	N Closed	R	S	X Closed	BB
1/4*4	400	0.30	0.25	0.45	1.59	1.27	11.46	7.46	12.09	8.09	0.78	0.34	1.75	4.00
5/16*4-1/2	700	0.47	0.31	0.50	1.94	1.50	13.19	8.69	13.47	9.47	0.94	0.44	2.09	4.50
3/8*6	1000	0.75	0.38	0.56	2.30	1.77	16.50	10.98	17.94	11.94	1.12	0.53	2.52	6.00
1/2*6	1500	1.60	0.50	0.66	2.94	2.28	18.45	12.45	19.67	13.16	1.44	0.72	3.23	6.00
1/2*9	1500	1.83	0.50	0.66	2.94	2.28	24.45	15.45	25.67	16.67	1.44	0.72	3.23	9.00
1/2*12	1500	2.08	0.50	0.66	2.94	2.28	30.45	18.45	31.67	19.67	1.44	0.72	3.23	12.00
5/8*6	2250	2.75	0.63	0.84	3.69	2.81	19.96	13.96	21.47	15.47	1.75	0.88	3.90	6.00
5/8*9	2250	3.13	0.63	0.84	3.69	2.81	25.96	16.96	27.47	18.47	1.75	0.88	3.90	9.00
5/8*12	2250	3.50	0.63	0.84	3.69	2.81	31.96	19.96	33.47	21.47	1.75	0.88	3.90	12.00
3/4*6	3000	3.89	0.75	0.98	4.52	3.33	21.63	25.96	23.45	17.45	2.09	1.00	4.69	6.00
3/4*9	3000	4.16	0.75	0.98	4.52	3.33	27.63	31.96	29.45	20.45	2.09	1.00	4.69	9.00
3/4*12	3000	5.43	0.75	0.98	4.52	3.33	33.63	21.63	35.45	23.45	2.09	1.00	4.69	12.00
3/4*18	3000	7.25	0.75	0.98	4.52	3.33	45.63	27.63	47.45	29.45	2.09	1.00	4.69	18.00
7/8*12	4000	8.10	0.88	1.13	5.19	3.78	34.78	22.78	36.91	24.91	2.38	1.25	5.10	12.00
7/8*18	4000	9.95	0.88	1.13	5.19	3.78	46.78	28.78	48.91	30.91	2.38	1.25	5.10	18.00
1*6	5000	9.33	1.00	1.25	5.84	4.25	24.80	18.80	27.20	21.2	3.00	1.44	6.36	6.00
1*12	5000	11.93	1.00	1.25	5.84	4.25	36.80	24.80	39.20	27.2	3.00	1.44	6.36	12.00
1*18	5000	14.00	1.00	1.25	5.84	4.25	48.80	30.80	51.20	33.2	3.00	1.44	6.36	18.00
1*24	5000	17.25	1.00	1.25	5.84	4.25	60.80	36.80	63.20	39.2	3.00	1.44	6.36	24.00
1-1/4*12	5000	19.00	1.25	1.50	7.22	5.13	39.13	27.13	42.06	30.06	3.56	1.81	7.72	12.00
1-1/4*18	5000	23.00	1.25	1.50	7.22	5.13	51.13	33.13	54.06	36.06	3.56	1.81	7.72	18.00
1-1/4*24	5000	27.00	1.25	1.50	7.22	5.13	63.13	39.13	66.06	42.06	3.56	1.81	7.72	24.00
1-1/2*12	7500	27.50	1.50	1.88	8.34	5.75	41.72	29.72	44.72	32.72	4.06	2.12	8.62	12.00
1-1/2*18	7500	31.00	1.50	1.88	8.34	5.75	53.72	35.72	56.72	38.72	4.06	2.12	8.62	18.00
1-1/2*24	7500	37.50	1.50	1.88	8.34	5.75	65.72	41.72	68.72	44.72	4.06	2.12	8.62	24.00

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products, the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
