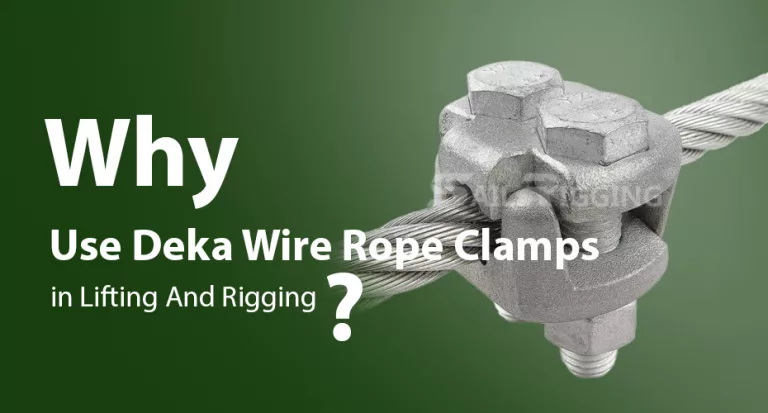

Why Use Deka Wire Rope Clamps in Lifting And Rigging ?

Wire rope clips are widely used to fix wire ropes in lifting and rigging systems. Among various types of wire rope clips, Deka wire rope clips, called double saddle clips，are suggested for lifting operations due to their structural design and superior load distribution.

It is important to know when and why deka wire rope clips are used. Today i will share the importance of deka wire rope clamps, how to operat wire rope clamps correctly, how to ensure wire rope systems remain safe and efficient.

What Are Deka wire rope clips?

Deka wire rope clips, known as double saddle wire rope clips. Compared with standard U bolt clips, they use saddle clips on both sides of the wire rope, thus forming a more balanced clamping structure.

The main features include:

• Double saddle design, with contact points on both sides of the steel wire rope.
• casting malleable steel, higher strength

Distribute pressure evenly along the surface of the steel wire rope.

Compared with traditional clamps, this design helps to reduce local stress points and provide a more uniform clamping force. Therefore, Deka wire rope clamps are often used in lifting and tensioning applications with higher requirements.

Better load distribution in lifting and hoisting applications

One of the main reasons why Deka wire rope clips are used in lifting operations is that they can distribute the load more evenly.

In lifting system, the steel wire rope is always under tension. If the load is concentrated in a small area, it may cause deformation or premature wear. The double sheave design spreads the pressure over a larger surface area, thereby helping to maintain the integrity of the steel wire rope.

This improved load distribution brings the following advantages:

• Reduce stress concentration
• Reduce the risk of deformation of the steel wire rope
• More stable clamping force under load
• This feature is a major advantage for lifting operations that are crucial to safety.

Reduce the damage to steel wire ropes

Steel wire ropes are composed of multiple strands of steel wire. Excessive compression can damage their internal structure. Standard U-bolt clamps often apply uneven pressure, which may cause the steel wire rope at the contact points to be flattened or have its strength reduced.

Deka wire rope clips reduce this problem by applying more balanced pressure. The saddle design can support both sides of the wire rope more evenly, thereby helping to:

• Minimize the extrusion of the outer steel wires to the greatest extent.
• Maintain the flexibility of the steel wire rope.
• Extend the overall service life

This is particularly important in applications where the steel wire rope needs to be reused multiple times or subjected to continuous load cycles.

Common Applications of Deka Wire Rope Clamps in Lifting Applications

Deka wire rope clips are often used in applications where safety and reliability are of high importance. Typical application scenarios include:

• Construction hoisting and rigging systems
• Industrial equipment handling
• Marine and offshore rigging
• Temporary lifting device
• Heavy machinery fixing system

It is usually chosen for use in situations where the end of the steel wire rope needs to bear a higher load or meet stricter safety requirements.

In many cases, users will refer to the EN 13411 standard when choosing the method for fixing the end of a lifting wire rope, especially in regulated environments.

Safety Precautions for Installation and Use

Although Deka wire rope clips perform better, correct installation is more crucial for safe operation.

Key installation points include:

• Make sure wire rope clips in the right direction before tightening.
• Use the recommended number of wire rope clips according to the diameter of the steel wire rope.
• Apply the appropriate torque to the nut to achieve a firm grip.
• Maintain the correct spacing between the clips.
• Retighten after the first load application.

Even high-quality clamps can have their effectiveness significantly reduced by incorrect installation. In lifting applications, the quality of installation is as important as the product selection.

Inspection and Maintenance Guide

Regular inspections are crucial for ensuring continuous safe operation. Wire rope clips should be inspected as part of the daily rigging checks.

The main inspection points include:

• Check if the clips are deformed or bent.
• Check for any corrosion or surface damage.
• Check for any slippage marks on the steel wire rope.
• Check the tightness of the nuts and the condition of the threads.
• Make sure there are no missing or loose parts.

If any signs of damage or displacement are found, the wire rope clamp should be stopped immediately. In a lifting operation environment, preventive checks can help avoid unexpected malfunctions.

Conclusion

Deka wire rope clips are widely used in lifting and rigging due to their structural advantages. The double saddle structure can better distribute the load, reduce wire rope damage, and improve overall stability under force. If you have any question about deka wire rope clamps, don’t hesitate to contact Sail Rigging.
