How to Choose the Right D Ring for Your Trailer？

When transport heavy equipment or high valuable cargo, select the right trailer tie-down points is crucial. Welded D-ring is very reliable and durable tie down points to secure cargo. Heavy duty welded D rings provides a secure anchor point for ratchet straps, chains, etc. It could ensure your cargo more stable during transport. This article will share D ring size, application, material, applications, advantages, and more, and how to choose the right D-rings for cargo safety.

What are Trailer D-rings?

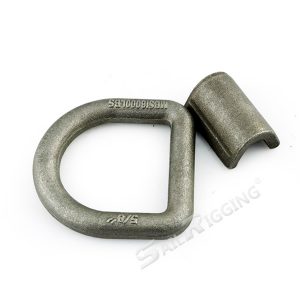

D rings, also called tie down rings, tie down anchors, are D shaped heavy duty anchor points for cargo securing. They are usually welded or bolted on trailers, flatbed trucks, truck beds.It will provide a safe connection for tie-down straps, chains, and ropes, ensuring cargo more stable during transport.

Trailer D-ring Materials

There’re bolt-on D-rings, welded D-rings, recessed D-rings, and swivel D-rings. Welded D-rings are widely used in cargo securement. It is made from high-carbon steel and forged at high temperatures, could withstanding immense tensile force and weight.

Advantages of Welded D-rings

Welded D-rings are stronger and safer. After welding, they will be an integral part of the trailer, preventing the risk of loosening over time. They are ideal for heavy-duty transport to secure high load and resistance from vibration.

1.Stronger –The working load limit of Weld on D rings are up to 15,000 pounds and breaking strength is 47,000 pounds, capable of withstanding the strong pulling force of hooked straps, ensuring safe cargo transport.

2.More Durable – Welded D ring is made of high-quality forged carbon steel, they are durable and reusable, providing reliable safety protection for your cargo.

3.More Compatible
They can be welded to various external surfaces, making it easy to connect ropes, cables, ratchet straps, or tie-down chains, thus providing secure trailer transport on platforms, trucks, trailers, docks, warehouses, and even vans.

Application

1. Flatbed trailers – Used to secure construction equipment, lumber, or machinery, such as heavy equipment like excavators, bulldozers, and loaders. 1-inch D-rings (15,000 lbs working load limit) can withstand extremely heavy weights; 5/8-inch D-rings (6000 lbs working load limit) are suitable for medium loads and are essential tools for flatbed truck and container transport;

2. Enclosed trailers – Used to secure furniture, appliances, or boxes. 1/2-inch D-rings (4000 lbs working load limit) are suitable for low-load applications;

3. Truck beds – Used for transporting motorcycles, ATVs, or heavy tools, such as securing heavy equipment like excavators, bulldozers, and loaders. 3/4-inch D-rings (8,800 lbs working load limit) offer both strength and versatility;

4. Boat and RV transport – Used to stabilize boats, jet skis, or campers, requiring either 1-inch D-rings (15,000 lbs working load limit) or 5/8-inch D-rings (6000 lbs working load limit).

Size And WLL of weld on D ring

Choosing the right D-ring size depends on your load capacity requirements. The following is the common weld-on D-rings and their Working Load Limits (WLL) and breaking strengths. If you have special size requiement, pls contact Sail Riggging for customization service.

Conclusion

D-rings are indispensable equipment for securing cargo on trailers, make transportation more safe and efficient.When you transport heavy equipment or securing furniture, choosing the right D-ring size and installing properly is crucial. Sail Rigging D-rings provide reliable performance with breaking strengths up to 47,000 lbs and easy installation, making them ideal for various cargo transportation applications. If you have any question about tie-down D-rings, please feel free to contact us. We not only manufacture high-quality weld-on D-rings but also have an independent laboratory that can arrange D-ring testing, let you more confidence in cargo securing safety.

FAQ

1. What is the load capacity of D-ring?
The load capacity of D-ring depends on the material and the size. Most trailer weldable D rings are made of forged carbon steel, have a certain breaking strength rating. This is usually one-third of the breaking strength.For example, the breaking strength 18000lbs has 6000lbs working load limit. This means that it is safe to use this D-ring to secure cargo weighing no more than 6,000 lbs within safe limits.

2.Are D rings suitable for all types of trailers?
D-rings are typically compatible with most trailers , such as flatbed trailers, utility trailers, car haulers, and agricultural trailers. However, it’s essential to ensure that the stake pockets on your trailer are of a standard size to accommodate the D-rings.
