The DIN741 standard is a widely recognized specification for wire rope clips, established by the Deutsches Institut für Normung (DIN), the German Institute for Standardization. This standard outlines the design, dimensions, material requirements, and testing protocols for wire rope clips to ensure their reliability and safety in securing wire rope assemblies.
Key Features of the DIN741 Standard Wire Rope
Design and Construction:

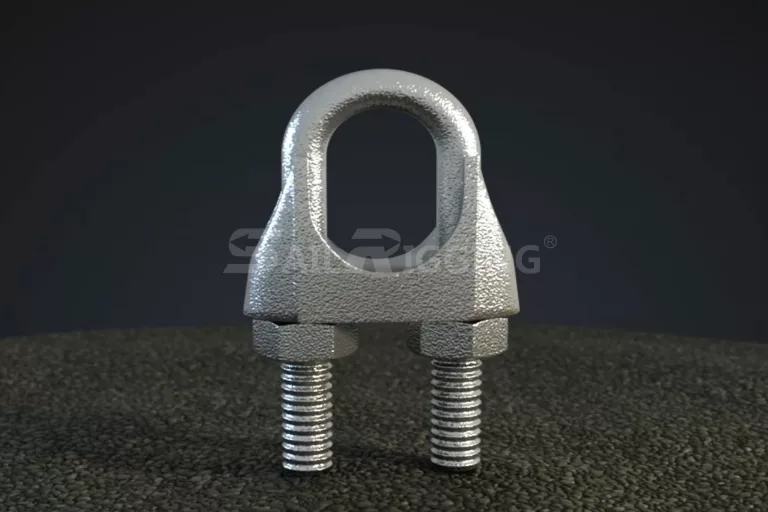

- U-Bolt: The DIN741 wire rope clip features a U-shaped bolt that is designed to go over the wire rope, providing a clamp mechanism. The U-bolt is typically threaded at both ends to allow for the attachment of nuts.
- Saddle: The saddle is the part of the clip against which the wire rope is pressed. In DIN741 clips, the saddle is typically grooved to provide better grip and reduce the risk of slippage.
- Nuts: The nuts are used to tighten the U-bolt around the saddle, clamping the wire rope securely. These nuts are usually hexagonal to facilitate easy tightening with standard tools
Material Requirements:
- Forged Steel or Malleable Cast Iron: DIN741 wire rope clips are made from high-strength materials such as forged steel or malleable cast iron. These materials provide the necessary durability and resistance to mechanical stresses.
- Galvanized Finish: To enhance corrosion resistance, DIN741 wire rope clips are often galvanized. The zinc coating protects the underlying metal from rust and corrosion, making the clips suitable for use in harsh environments, including marine and industrial settings.
- Dimensions and Specifications:
- Standardized Dimensions: The DIN741 standard specifies exact dimensions for each component of the wire rope clip, including the U-bolt, saddle, and nuts. These dimensions ensure compatibility and interchangeability of clips across different manufacturers.
- Load Ratings: The standard provides guidelines for load ratings based on the wire rope diameter. This ensures that users select the appropriate clip size for their specific application, maintaining safety and performance.
Testing and Quality Assurance:
- Load Testing: DIN741 wire rope clips undergo rigorous load testing to verify their strength and durability. These tests simulate real-world conditions to ensure that the clips can withstand the specified loads without failure.
- Quality Control: Manufacturers producing DIN741 wire rope clips must adhere to strict quality control measures. This includes material inspections, dimensional checks, and performance tests to ensure that each clip meets the standard’s requirements.
- Importance of Adhering to the DIN741 Standard
Using wire rope clips that conform to the DIN741 standard is crucial for several reasons:
- Safety: The standardized design and rigorous testing ensure that DIN741 wire rope clips provide reliable and secure connections. This minimizes the risk of accidents caused by clip failure.
- Consistency: The precise dimensions and material specifications ensure consistent performance across different batches and manufacturers. Users can trust that DIN741 clips will perform as expected in their applications.
- Interchangeability: Standardized dimensions mean that DIN741 wire rope clips from different manufacturers are interchangeable. This provides flexibility and convenience in sourcing and replacing clips.
- Durability: The high-quality materials and corrosion-resistant finishes specified by the DIN741 standard enhance the longevity of the wire rope clips, reducing the need for frequent replacements.
Applications of DIN741 Wire Rope Clips
DIN741 wire rope clips are versatile and used in a wide range of applications, including:
- Construction: Securing loads and creating anchor points for scaffolding and structural elements.
- Marine: Rigging on ships, boats, and offshore platforms, where corrosion resistance is crucial.
- Industrial: Heavy lifting, hoisting, and securing machinery and equipment.
- Agriculture: Fencing, securing livestock enclosures, and handling agricultural machinery.
Conclusion
The DIN741 standard sets a high benchmark for wire rope clips, ensuring that they are reliable, safe, and durable. By specifying exact dimensions, materials, and testing protocols, this standard provides users with confidence in the performance and safety of their wire rope assemblies. For any application involving wire ropes, choosing clips that adhere to the DIN741 standard is essential for maintaining the integrity and security of the setup. If you want to know more about wire rope clip, please feel free to contact Sail Rigging.
