What Are Wire Rope Fittings?

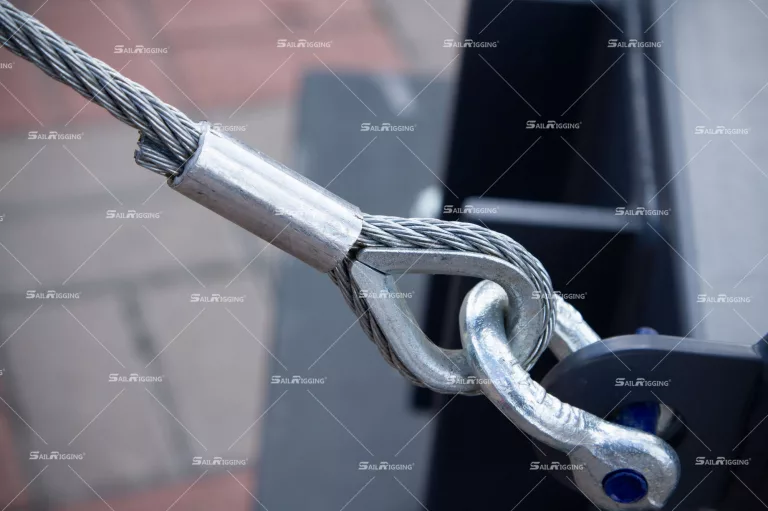

Shackle And Thimble

Wire rope fittings are essential components used in conjunction with wire ropes to enhance their functionality, ensure secure connections, and provide reliable performance in lifting, securing, and load-handling applications. These fittings serve as terminations or attachment points, enabling wire ropes to connect with other rigging hardware or structures.

Wire rope fittings come in various shapes, sizes, and materials to suit different industries, including construction, shipping, transportation, mining, and more. Their primary purpose is to ensure safety, efficiency, and durability in demanding environments.

Types of Wire Rope Fittings

Wire rope fittings can be categorized based on their function:

  1. End Terminations

End terminations are used to secure the end of a wire rope, creating a stable attachment point. Common types include:

  • Thimbles: Protect the eye of the wire rope from wear and tear by providing a smooth surface for attachments like hooks or shackles.
  • Swage Sockets: Permanent end fittings created by swaging, offering a compact and strong connection.
  • Wedge Sockets: Provide a removable connection by clamping the wire rope in place with a wedge.
  • Wire Rope Clips (Fist Grips or U-Bolt Clips): Temporary fittings for forming loops in wire rope, commonly used for rigging applications.
  1. Load-Securing Fittings

These fittings are designed to secure wire ropes to anchor points or other equipment. Examples include:

  • Turnbuckles: Used to adjust the tension in a wire rope assembly, ensuring proper load balance.
  • Hooks: Facilitate quick connections and load lifting; available in various designs like grab hooks and slip hooks.
  • Shackles: Provide a versatile connection between wire ropes, chains, or other hardware.
  1. Connectors

Connectors join two wire ropes or extend their length:

  • Sleeves and Ferrules: Used for splicing and creating a loop or connection by compressing the fitting onto the wire rope.
  • Swivels: Allow rotation without twisting the wire rope, preventing stress and damage.
  1. Safety Enhancements

Fittings that enhance the safety and durability of the wire rope:

  • Stoppers: Prevent the rope from running out of a pulley or sheave.
  • Load Pins or Bolts: Lock fittings like sockets and shackles securely in place.

Materials and Surface Finishes

Wire rope fittings are typically made from durable materials to withstand heavy loads, environmental conditions, and repeated use.

  • Materials: Carbon steel, stainless steel, and alloy steel are common due to their strength and corrosion resistance.
  • Surface Finishes: Include galvanization, powder coating, or self-color with oil to enhance durability and prevent rust.

Applications of Wire Rope Fittings

Wire rope fittings are widely used in industries requiring lifting, securing, or suspending loads:

  • Construction: Crane lifting, rigging, and scaffolding.
  • Marine: Securing boats, docks, and cargo.
  • Transportation: Tie-down systems for trucks and trailers.
  • Mining: Supporting structures and moving materials.
  • Aviation: Aircraft cable assemblies and load management.

Wire rope fittings are critical for ensuring the safety, reliability, and efficiency of wire rope systems. Selecting the right fitting for your application involves considering the load capacity, material, and environmental factors. Proper installation and maintenance further ensure long-term performance and safety. Qingdao Sail Rigging Co.,Ltd are foscuing on excellent quality rigging hardware for over 15 years, if you need wire rope fittings, please contact Sail Rigging right now.
