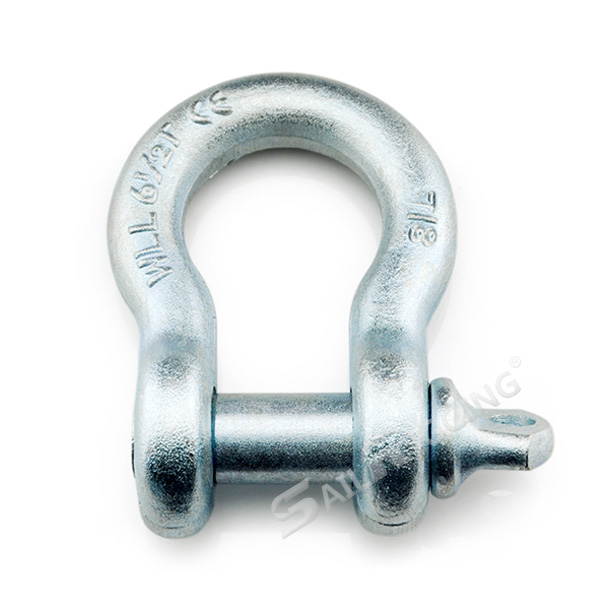

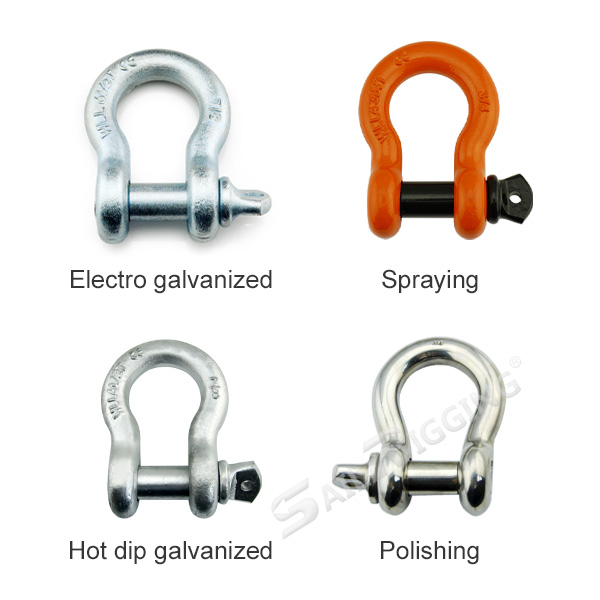

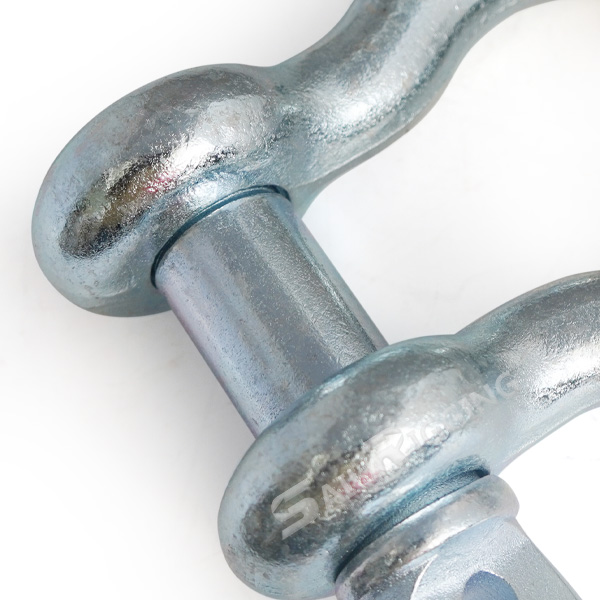

US type G209 screw pin shackle is a type of shackle with screw pin, is a durable and reliable rigging tool. It is built to meet ASTM A153 and Federal Specification RR-C-271F Type IVA standards. Sail Rigging G209 Shackle is made from high tensile carbon steel 45, features its bow shackle, which makes it easily attached to chains ,slings and ropes. The minimum breaking strength(M.B.S) at 4-6 times, shackle after drop forged and heat treatment is 6 times, drop forged but no heat treatment is 4 times. The galvanized finish ensures long-lasting protection against corrosion, making the G210 shackle a trusted choice for both industrial and marine use.
Feature:
| Size (in) |
WLL (t) |
Dimensions(in) | Weight (lbs) | |||||||||||

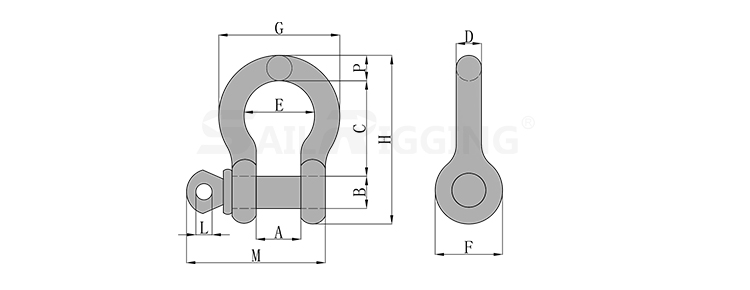

| A | B | C | D | E | F | G | H | L | M | N | P | |||
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.38 | 1.34 | 0.25 | 0.12 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.66 | 1.59 | 0.31 | 0.19 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.03 | 1.86 | 0.38 | 0.31 |
| 7/16 | 1 1/2 | 0.75 | 0.50 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.38 | 2.13 | 0.44 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 2.38 | 0.5 | 0.63 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.50 | 2.94 | 4.19 | 0.44 | 3.34 | 2.91 | 0.69 | 1.38 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2.00 | 1.81 | 3.50 | 4.97 | 0.50 | 3.97 | 3.44 | 0.81 | 2.25 |
| 7/8 | 6 1/2 | 1.44 | 1.00 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.50 | 4.50 | 3.81 | 0.97 | 3.38 |
| 1 | 8 1/2 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.07 | 4.53 | 1.06 | 5.32 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.59 | 5.13 | 1.25 | 6.81 |
| 1 1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 5.75 | 8.25 | 0.69 | 6.16 | 5.5 | 1.38 | 9.50 |
| 1 3/8 | 13 1/2 | 2.25 | 1.50 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.84 | 6.13 | 1.50 | 13.25 |
| 2 1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10.00 | 0.81 | 7.35 | 6.5 | 1.62 | 17.20 |
| 1 3/4 | 25 | 2.88 | 2.00 | 7.00 | 1.84 | 5.00 | 4.19 | 8.86 | 12.34 | 1.00 | 9.08 | 7.75 | 2.25 | 30.38 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.34 | 8.75 | 2.40 | 45.00 |
| 2 1/2 | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13.00 | – | 3.13 | 85.75 |
