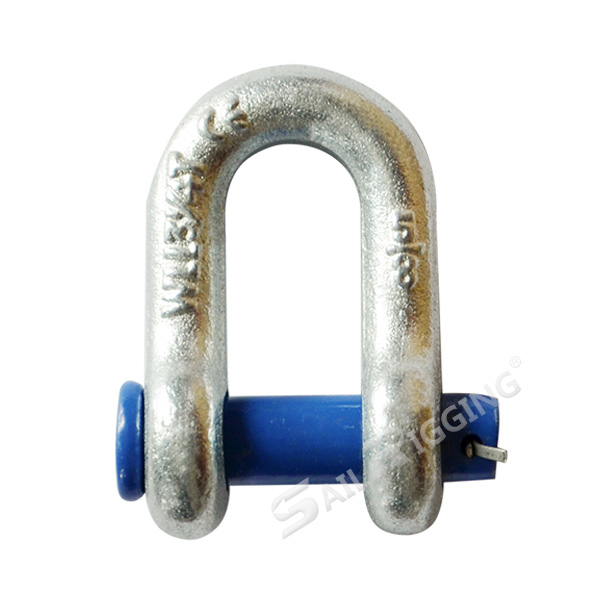

US TYPE DEE SHACKLE G215

US TYPE DEE SHACKLE G215

Feature:

  • Material: Body 45# Carbon Steel, Pin 40Cr Alloy Steel
  • Technology: Drop Forged

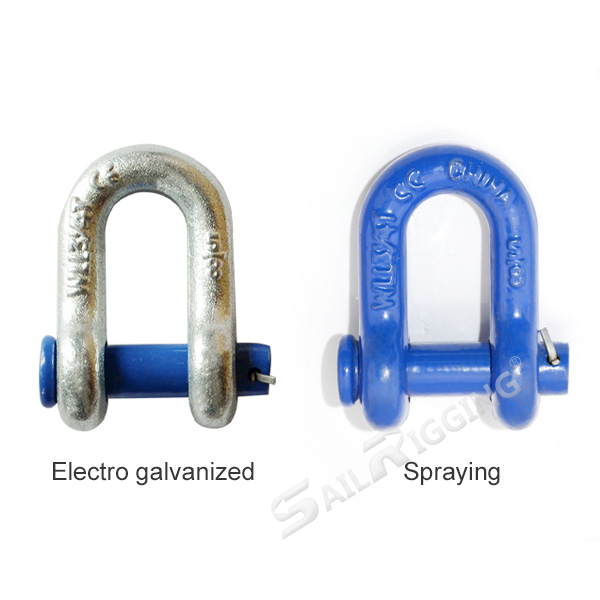

  • Surface Finish: Electro Galvanized, Hot Dip Galvanized, Dacromet, Powder Coated
  • Ultimate Load: 4 times or 6 times of the WILL
  • Heat Treatment: 6 times
  • Usage: Lifting and connecting, Wire rope fittings, chain fittings, Maring hardware fittings

share to:

Product

Description

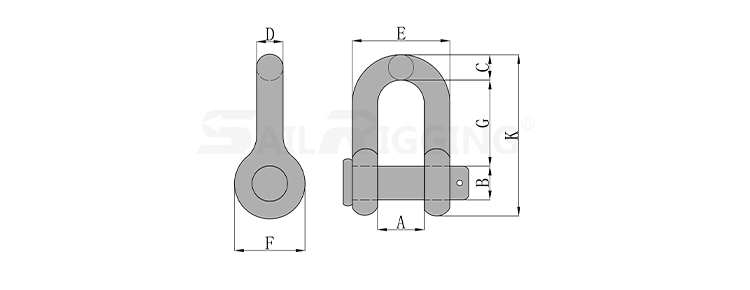

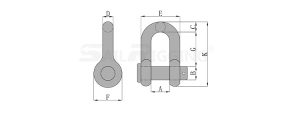

G215 Shackle DRG
Size
(in)
WLL
(t)
Dimensions(in) Weight (lbs)
A B C D E F G K L M
1/4 1/2 0.47 0.31 0.25 0.25 0.97 0.62 0.97 1.59 0.19 1.43 0.10
5/16 3/4 0.53 0.38 0.31 0.31 1.15 0.75 1.07 1.91 0.22 1.71 0.18
3/8 1 0.66 0.44 0.38 0.38 1.42 0.92 1.28 2.31 0.25 2.02 0.25
7/16 1 1/2 0.75 0.50 0.44 0.44 1.63 1.06 1.48 2.67 0.31 2.37 0.40
1/2 2 0.81 0.63 0.50 0.50 1.81 1.18 1.66 3.03 0.38 2.69 0.50
5/8 3 1/4 1.06 0.75 0.62 0.63 2.32 1.50 2.04 3.76 0.44 3.34 1.21
3/4 4 3/4 1.25 0.88 0.81 0.75 2.75 1.81 2.40 4.53 0.50 3.97 2.00
7/8 6 1/2 1.44 1.00 0.97 0.88 3.20 2.10 2.86 5.33 0.50 4.5 3.28
1 8 1/2 1.69 1.13 1.00 1.00 3.69 2.38 3.24 5.94 0.56 5.13 4.75
1 1/8 9 1/2 1.81 1.25 1.25 1.13 4.07 2.69 3.61 6.78 0.63 5.71 6.30
1 1/4 12 2.03 1.38 1.38 1.25 4.53 3.00 3.97 7.50 0.69 6.25 9.00
1 3/8 13 1/2 2.25 1.50 1.50 1.38 5.01 3.31 4.43 8.28 0.75 6.53 12.00
1 1/2 17 2.38 1.62 1.62 1.50 5.38 3.62 4.87 9.05 0.81 7.33 16.15
1 3/4 25 2.88 2.12 2.12 1.75 6.38 4.19 5.78 10.97 1.00 9.06 29.96
2 32 3.25 2.00 2.00 2.00 7.25 5.00 6.77 12.74 1.22 10.35 43.25
2 1/2 55 4.12 2.62 2.63 2.63 9.38 5.68 8.07 14.85 1.38 13.00

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products, the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
