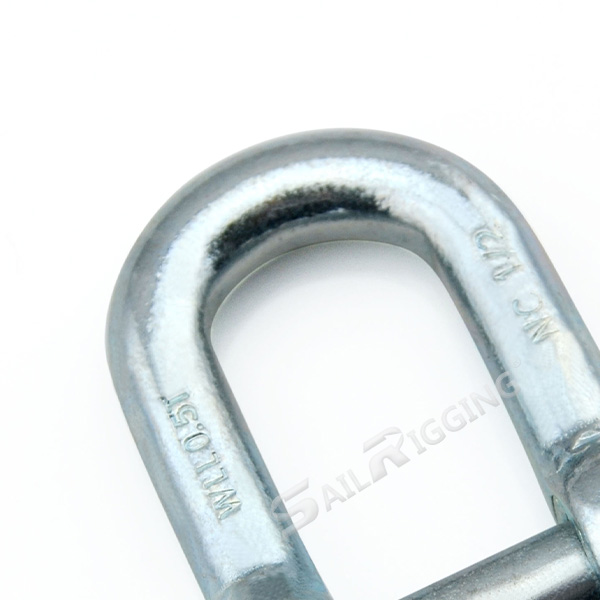

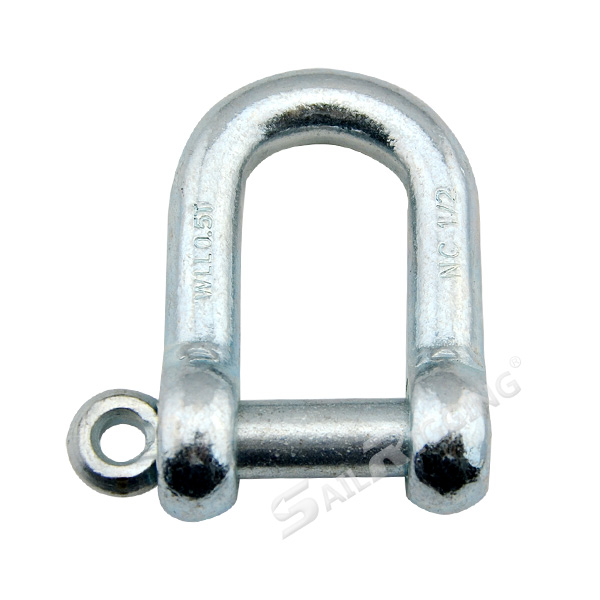

JIS TYPE Dee SHACKLE WITHOUT COLLOR

JIS TYPE Dee SHACKLE WITHOUT COLLOR

Feature:

  • Material: Q235 Carbon Steel
  • Technology: Free Forged
  • Surface Finish: Electro Galvanized
  • Usage: Lifting and connecting, Wire rope fittings, chain fittings, Maring hardware fittings

share to:

Product

Description

JIS Type D Shackle

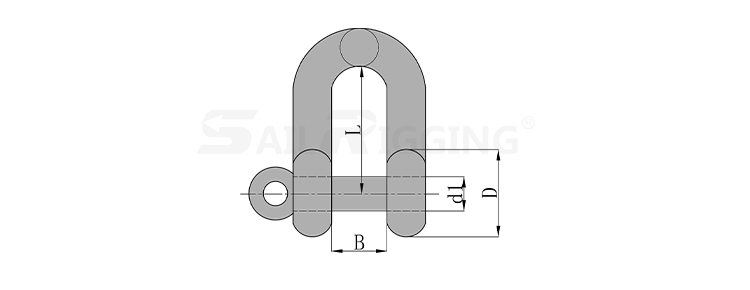

Size Dimensions(mm) WLL(t) Weight(kg)
m/m in B D L d1 A B
5 3/16 10.00 10.00 18.50 5.00 0.09 0.013 0.024
6 1/4 12.00 11.00 25.00 6.50 0.15 0.026 0.062
8 5/16 14.00 15.00 31.00 8.50 0.25 0.046 0.062
9 3/8 18.00 17.00 36.00 10.00 0.40 0.070 0.077
12 1/2 24.00 23.00 46.00 13.00 0.60 0.170 0.190
16 5/8 30.00 32.00 59.00 17.00 0.80 0.400 0.475
19 3/1 36.00 37.00 74.00 20.00 1.00 0.700 0.780
22 7/8 43.00 43.00 86.00 23.00 1.50 1.100 1.180
25 1 47.00 50.00 95.00 27.00 2.00 1.700 1.800
28 11/8 55.00 56.00 110.00 30.00 2.50 2.400 2.550
32 11/4 64.00 64.00 130.00 34.00 3.20 3.600 3.900
38 11/2 76.00 76.00 145.00 40.00 4.20 6.000 6.900
44 13/4 80.00 90.00 160.00 47.00 6.50 10.000
50 2 100.00 100.00 185.00 53.00 8.00 12.000
65 21/2 110.00 130.00 240.00 68.00 15.00 28.000
75 3 120.00 150.00 300.00 78.00 20.00 44.000

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products, the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
