JIS1168 EYE BOLT

JIS1168 EYE BOLT

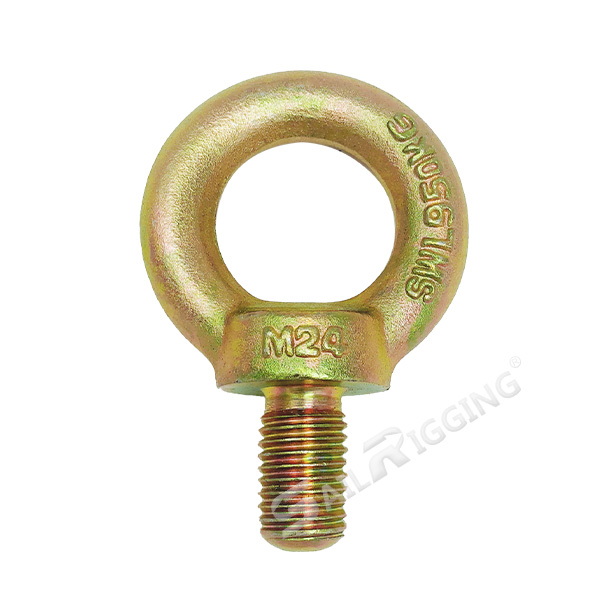

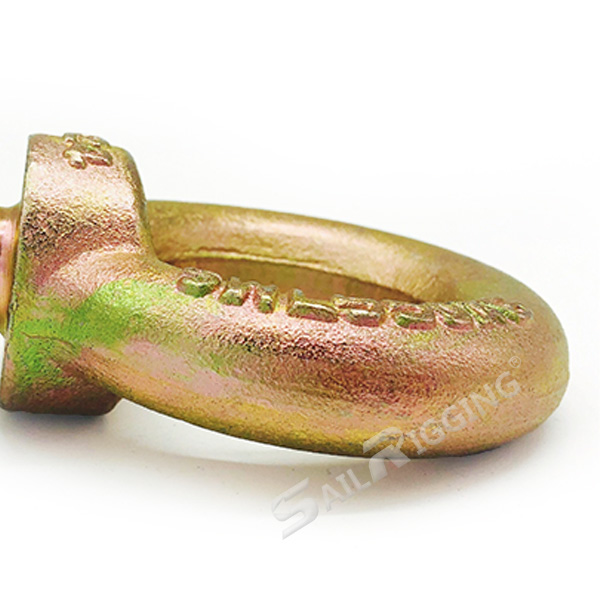

JIS1168 eye bolt is a type of lifting eye bolt, manufactured to meet Japanese Industrial Standard JIS1168, known for their durability and reliability. They feature a looped head, allowing ropes, cables, or chains to be easily attached. JIS1168 eye bolts are designed to handle heavy loads and provide a secure attachment point, commonly used in construction, marine, and industrial applications.

Feature:

  • Material: Q235 Carbon Steel

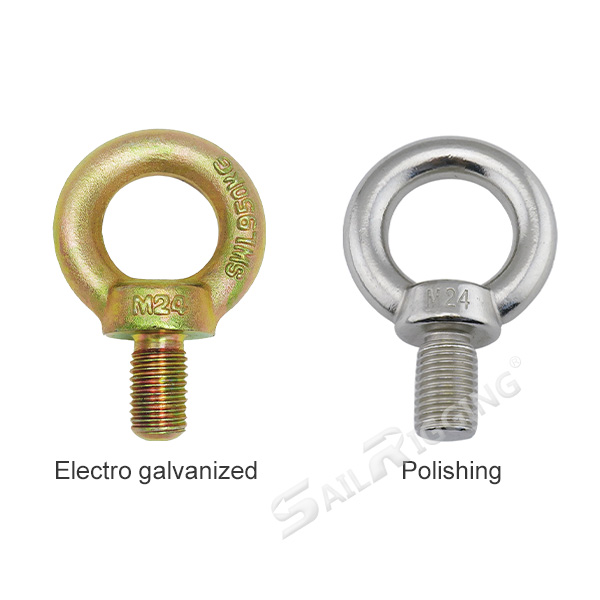

  • Surface Finish: Electro Galvanized
  • Technology: Drop Forged
  • Size: From M8 to M64
  • Standard: JIN
  • Function: For Lifting Industry, Wire rope fittings, Chain fittings, Marine hardware fittings

share to:

Product

Description

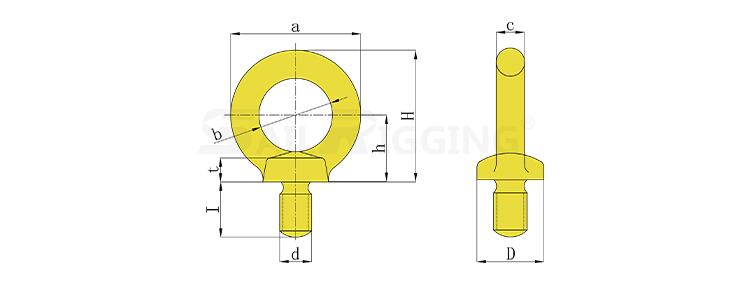

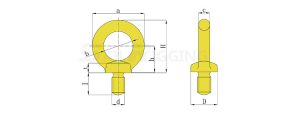

JIS1168 Eye Bolt drg
Size(d)
(mm)
WLL
(kn)
Dimensions(mm)
a b c D t h H I
M8 0.80 32.60 20.00 6.30 16.00 5.00 17.00 33.30 15.00
M10 1.50 41.00 25.00 8.00 20.00 7.00 21.00 41.50 18.00
M12 2.20 50.00 30.00 10.00 25.00 9.00 26.00 51.00 22.00
M16 4.50 60.00 35.00 12.50 30.00 11.00 30.00 60.00 27.00
M20 6.30 72.00 40.00 16.00 35.00 13.00 35.00 71.00 30.00
M24 9.50 90.00 50.00 20.00 45.00 18.00 45.00 90.00 38.00
M30 15.00 110.00 60.00 25.00 60.00 22.00 55.00 110.00 45.00
M36 23.00 133.00 70.00 31.50 70.00 26.00 65.00 131.50 55.00
M42 34.00 151.00 80.00 35.50 80.00 30.00 75.00 150.50 65.00
M48 45.00 170.00 90.00 40.00 90.00 35.00 85.00 170.00 70.00
M64 90.00 210.00 110.00 50.00 110.00 42.00 105.00 210.00 90.00

OUR

ADVANTAGE

1.4 perfect forging lines โ€“ our main products include standard rigging products and customized products, the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on โ€œcustomer-centricโ€ business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
