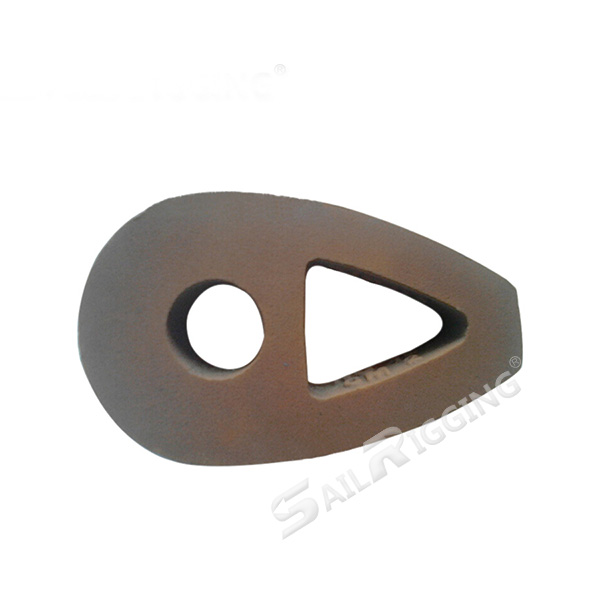

DIN3091 THIMBLE

DIN3091 THIMBLE

Feature:

  • Material: Malleable Steel
  • Standard: DIN Standard
  • Surface: Electro Galvanized, Hot Dip Galvanized
  • Technology: Casting
  • Size: From 8mm to 80mm
  • Brand: Sail Rigging
  • Function: Fixed Rope

share to:

Product

Description

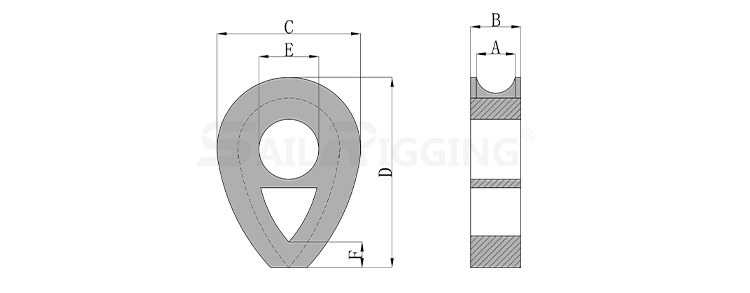

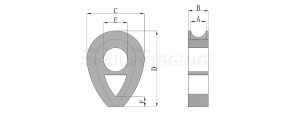

DIN3091 Thimble drg
Size (mm)
Rope Dia.
Dimensions(mm) Weight
100pcs
(kg)
A B C D E F
8 9 15 40 66 14 18
10 11 17.5 50 82 18 32
12 13 20 60 98 21 52
14 16 23.5 70 114 25 80
16 18 26 80 130 28 16 90
18 20 28.5 90 145 31 18 121
20 22 31 100 161 35 20 161
22 24 33.5 110 177 38 22 211
24 26 36 120 193 41 24 271
26 29 39.5 130 209 44 26 355
28 31 42 140 224 47 28 420
32 35 47 160 256 53 32 630
36 40 53 180 288 59 36 884
40 44 58 200 320 65 40 1100
44 48 63 220 352 70 44 1500
48 53 69 240 384 76 48 2000
52 57 74 260 416 81 52 2500
56 62 80 280 448 86 56 3200
64 70 90 320 512 95 64 4600
72 79 101 360 576 104 72 6600
80 88 112 400 640 112 80 9000

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products, the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
