Wire rope clips are essential components used in various industries to secure the ends of wire ropes. They are vital in applications ranging from construction to marine and industrial settings. Among the numerous types of wire rope clips available, two types are the most commonly used: the U-bolt wire rope clip and the double saddle (or fist grip) wire rope clip. Understanding their design, usage, and differences can help in selecting the right type for your specific needs. When sourcing these components, it is crucial to choose reliable wire cable clamp manufacturers, wire rope clamp suppliers, and steel cable clamps manufacturers and suppliers.
1. U-Bolt Wire Rope Clip

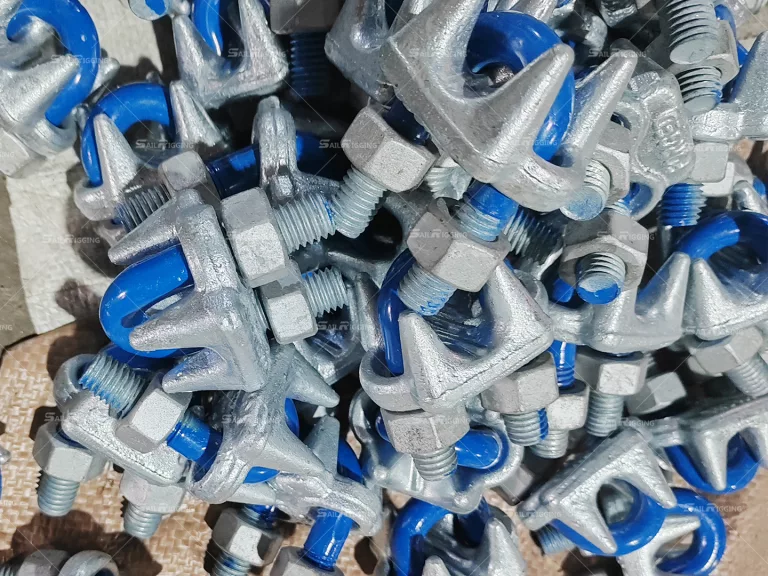

The U-bolt wire rope clip is the most widely recognized and utilized wire rope clip. Its simple yet effective design consists of three main parts: a U-shaped bolt, a forged saddle, and two nuts. Usually there’re several types of U Bolt Wire Rope Clip, such as US type drop forged wire rope clip, US type malleable wire rope clip, DIN741 malleable wire rope clip, DIN1142 malleable wire rope clip, Italian type wire rope clip, malleable wire rope clip type A, commercial heavy duty wire rope clip, malleable wire rope clip type B, JIS Type drop forged wire rope clip etc.
Design and Components
- U-Bolt:The U-shaped bolt fits around the wire rope.
- Saddle:The saddle provides a platform on which the rope rests.
- Nuts:Two nuts are used to tighten the clip and secure the rope in place.
Usage and Applications
The U-bolt wire rope clip is used to form load-bearing eye terminations, splice two wire ropes together, or create an end termination for temporary or permanent installations. This type of clip is commonly found in rigging, hoisting, and safety systems due to its ease of installation and reliability. For quality assurance, sourcing from reputable wire rope clamp suppliers and steel cable clamps manufacturers is essential.
Installation Tips
- Always apply the saddle on the live (loaded) end of the wire rope.
- Tighten the nuts evenly to ensure the clip holds the rope securely.
- Follow the manufacturer’s recommendations for the number of clips to use and the torque specifications for tightening.
2. Double Saddle (Fist Grip) Wire Rope Clip
The double saddle wire rope clip, also known as the fist grip clip, offers a more robust and secure solution compared to the U-bolt clip. It is designed with two saddles that grip the wire rope without causing damage.
Design and Components
- Double Saddles:These provide a large contact area, reducing the risk of rope deformation.
- Bolts and Nuts:Multiple bolts and nuts ensure even pressure distribution across the rope.
Usage and Applications
The double saddle wire rope clip is often used in heavy-duty applications where maximum holding power is required. Its design makes it ideal for critical applications such as lifting, suspending, and securing heavy loads in construction, mining, and industrial environments. Ensuring high-quality performance necessitates purchasing from trusted wire cable clamp manufacturers and steel cable clamps suppliers.
Installation Tips
- Position the clip with saddles on both sides of the rope to distribute pressure evenly.
- Tighten the bolts evenly to avoid slippage.
- Regularly inspect the clips for signs of wear or loosening, especially in high-load applications.
Conclusion
Choosing the right wire rope clip is crucial for ensuring the safety and effectiveness of your rigging or lifting operations. The U-bolt wire rope clip and the double saddle (fist grip) wire rope clip are the two most common types, each with its unique advantages. Understanding their design, proper installation techniques, and typical applications will help you make an informed decision and maintain the integrity of your wire rope systems. Always ensure you source these components from reliable wire cable clamp manufacturers, wire rope clamp suppliers, and steel cable clamps manufacturers and suppliers to guarantee quality and durability. If you want to know more about wire rope clips supplier or steel cable clamps manufacturer, please feel free to contact Sail Rigging.
