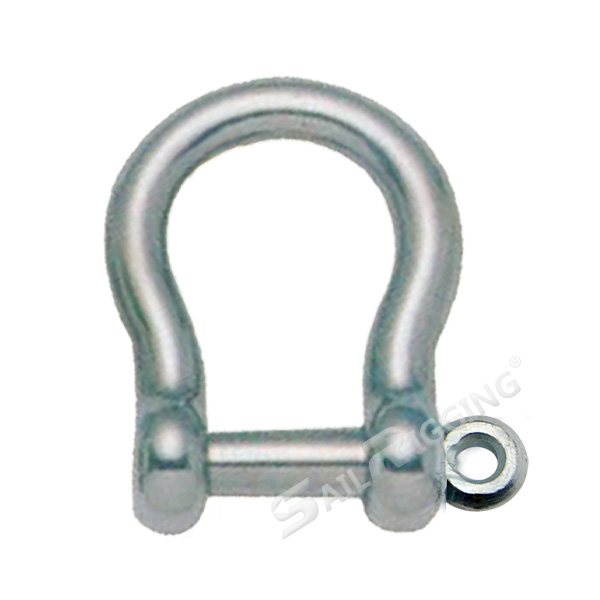

JIS TYPE BOW SHACKLE WITHOUT COLLOR

JIS TYPE BOW SHACKLE WITHOUT COLLOR

JIS Type bow shackles with collor are made of low carbon steel, planted with Zinc. They are widely used in lifting, tensioning and staying systems as removable links to interconnect other components. Compliant with JIS standard, JIS Standard bow shackles without collor are commercial type shackles with good quality but very competitive prices.

Feature:

  • Material: Q235 Carbon Steel
  • Technology: Free Forged
  • Surface Finish: Electro Galvanized
  • Usage: Lifting and connecting, Wire rope fittings, chain fittings, Maring hardware fittings

share to:

Product

Description

JIS TYPE BOW SHACKLE WITHOUT COLLOR

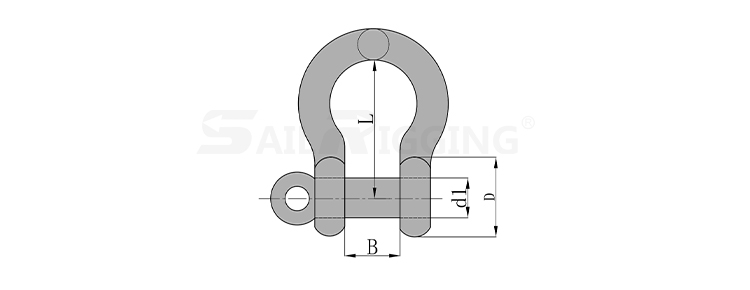

Size Dimensions(mm) WLL(t) Weight(kg)
m/m in B D L d1
5 3/16 10.00 10.00 18.50 5.00 0.09 0.024
6 1/4 12.00 11.00 25.00 6.50 0.15 0.062
8 5/16 14.00 15.00 31.00 8.50 0.25 0.062
9 3/8 18.00 17.00 36.00 10.00 0.40 0.077
12 1/2 24.00 23.00 46.00 13.00 0.60 0.190
16 5/8 30.00 32.00 59.00 17.00 0.80 0.475
19 3/1 36.00 37.00 74.00 20.00 1.00 0.780
22 7/8 43.00 43.00 86.00 23.00 1.50 1.180
25 1 47.00 50.00 95.00 27.00 2.00 1.800
28 11/8 55.00 56.00 110.00 30.00 2.50 2.550
32 11/4 64.00 64.00 130.00 34.00 3.20 3.900
38 11/2 76.00 76.00 145.00 40.00 4.20 6.900
44 13/4 80.00 90.00 160.00 47.00 6.50 โ€”
50 2 100.00 100.00 185.00 53.00 8.00 โ€”
65 21/2 110.00 130.00 240.00 68.00 15.00 โ€”
75 3 120.00 150.00 300.00 78.00 20.00 โ€”

OUR

ADVANTAGE

1.4 perfect forging lines โ€“ our main products include standard rigging products and customized products, the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on โ€œcustomer-centricโ€ business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
