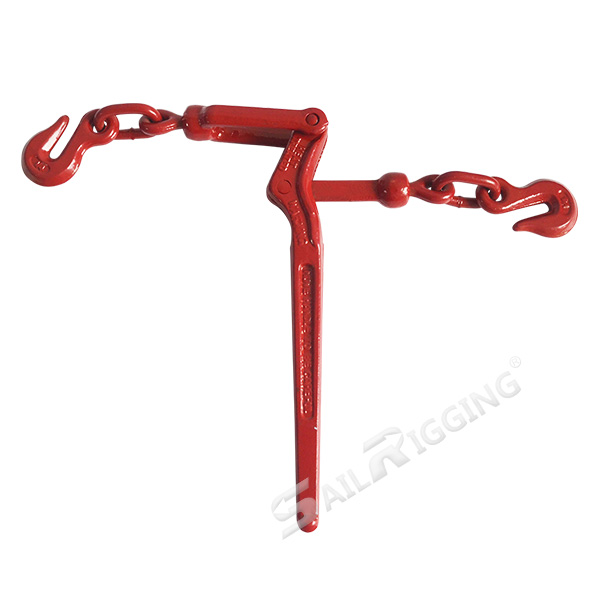

US LEVER TYPE LOAD BINDER

US LEVER TYPE LOAD BINDER

Feature:

  • Standard: US Standard
  • Handle: Forged
  • Grade: G70
  • Surface Finish: Powder Coated
  • Application: Never for lifting, only for lashing

share to:

Product

Description

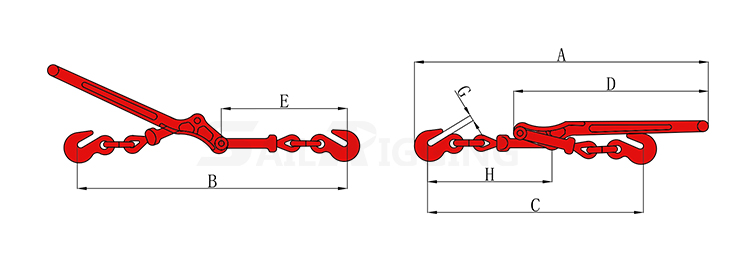

US Level Type Load Binder drg
Min-Max Chain Size(in) WLL(lbs) Proof Load(lbs) Breaking Load(lbs) Weight(lbs) Handle Length
(in)
Take
Up
(in)
Dimensions(in)
A B C D E F G
1/4-5/16 2600 4400 9200 3.52 11.42 11.42 18.50 17.30 14.17 11.42 8.27 8.07 0.35
5/16-3/8 5400 10800 19000 7.02 16.00 4.50 24.13 22.13 17.88 16.00 10.38 10.38 0.50
3/8-1/2 9200 18400 33000 12.47 18.69 4.50 28.75 25.75 21.25 18.69 12.31 12.38 0.63
1/2-5/8 13000 26000 46000 19.68 21.00 4.75 31.25 29.75 25.00 21.00 14.63 13.75 0.72

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products,the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
