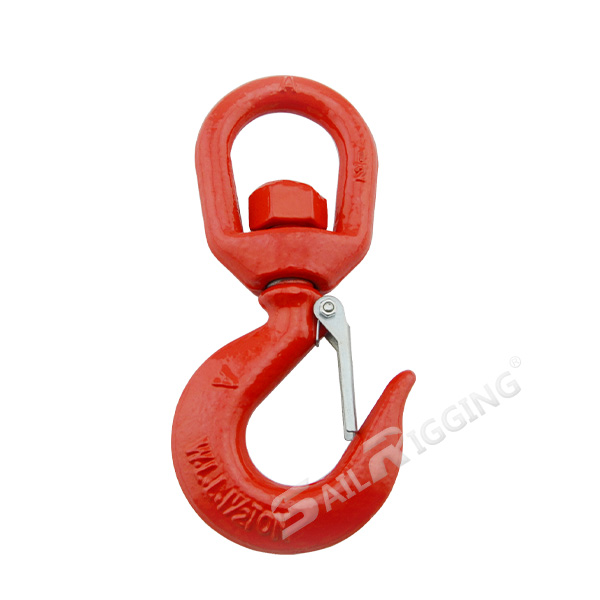

SWIVEL HOOK S322

SWIVEL HOOK S322

Feature:

  • Material:45# Carbon Steel or 40Cr Alloy Steel
  • Technology: Drop Forged
  • Surface Finish: Powder Coated
  • Ultimate Load: 5 times of the WLL
  • Class: Carbon Steel G43, Alloy Steel G70

share to:

Product

Description

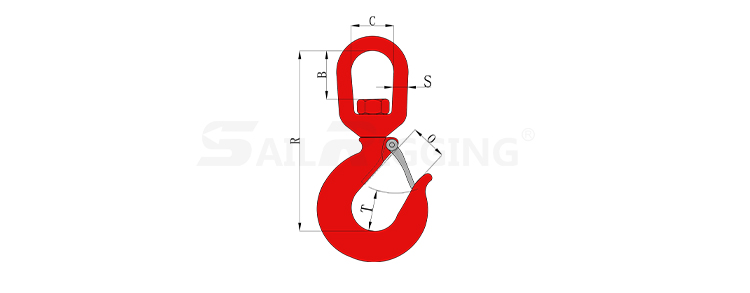

Swivel Hook S322 drg
WLL(t) Diemensions(in) Weight
(lbs)
322C 322A B C O R S T
3/4 1 0.93 1.25 0.88 4.47 0.37 0.80 0.77
1 1 1/2 1.31 1.50 0.97 5.28 0.50 0.80 1.27
1 1/2 2 1.62 1.75 1.00 6.00 0.62 0.84 2.28
2 3 1.56 1.75 1.13 6.37 0.62 1.19 2.60
3 4 1/2 1.75 2.00 1.34 7.40 0.75 1.37 4.81
5 7 2.31 2.50 1.69 9.59 1.00 1.78 10.40
7 1/2 11 2.38 2.75 2.06 11.12 1.13 2.13 16.42
10 15 2.80 3.12 2.25 11.93 1.25 2.50 23.40

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products,the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
