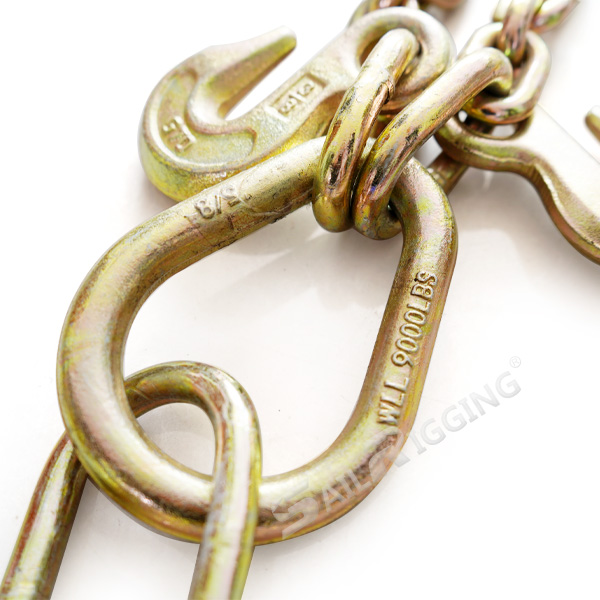

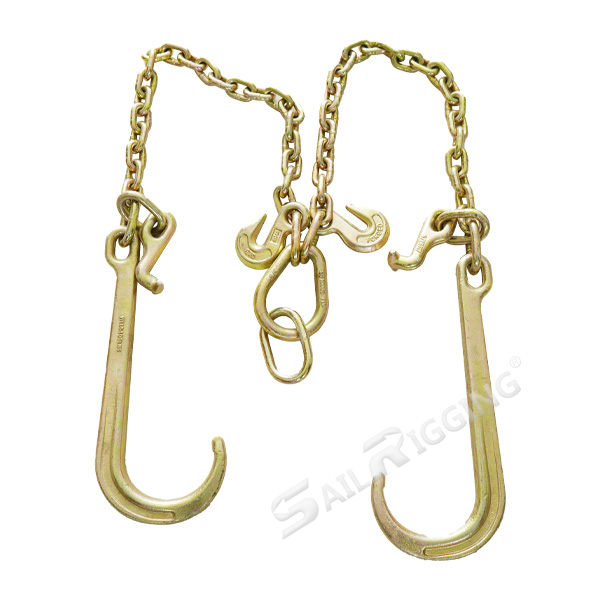

J HOOK CHAIN ASSEMBLY

J HOOK CHAIN ASSEMBLY

Feature:

  • Technology: Drop Forged
  • Material: Alloy Steel+20Mn2
  • Surface Finish:Yellow Zinc Plated
  • Including:G70 Chain + Big J Hook with Oval Hook + Small Link

share to:

Product

Description

Nominal Size Materrial Dianmeter Working Load
Limit
Proof Test Min Breaking Inside Length Inside Width
(min.) (Force) (Max.) (min.)
MM IN MM IN KG LBS KN LBS KN LBS MM IN MM IN
7.0  1/4 7.0 0.276 1430 3150 27.0 6100 53.9 12100 31.5 1.24 9.8 0.38
8.0   5/16 8.7 0.343 2130 4700 41.6 9400 83.5 18800 33.5 1.32 12.2 0.48

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products, the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
