DIN1142 MALLEABLE WIRE ROPE CLIP

DIN1142 MALLEABLE WIRE ROPE CLIP

Feature:

  • Product: Din1142 Wire Rope Clip
  • Place of origin: Shandong,China
  • Brand Name: Sail Rigging
  • Model Number: DIN1142
  • Material: Body-Malleable Steel, U Bolt- Q235 Carbon Steel
  • Surface: Spraying Paint , Spraying Plastics, Galvanized
  • Technology: Casting
  • Size: From 5mm to 40 mm

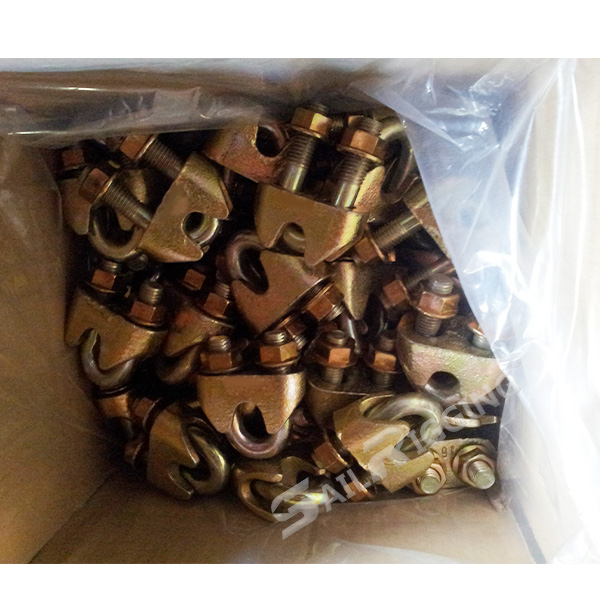

  • Packing: Gunny Bag + Pallet
  • Certification: ISO, SGS,CE
  • Using for: Fixing Wire Rope

share to:

Product

Description

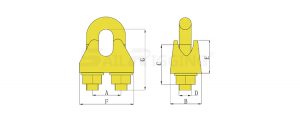

Size
(mm)
Dimensions(mm) Weight
100pcs
(kg)
A B C D E F G
5 12 13 14 5 13 25 20 2
6.5 14 16 17 6 14 30 26 4
8 18 20 20 8 18 39 33 8.2
10 20 20 24 8 21 40 38 9.2
13 24 28 29 12 29 55 52 27.5
16 34 32 35 14 35 64 62 43
19 37 33 36 14 40 68 69 49
22 41 34 40 16 44 74 80 68
26 46 38 50 20 51 84 91 117
30 54 41 55 20 59 95 107 140
34 60 45 60 22 67 105 119 213
40 68 49 65 24 77 117 135 268

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products,the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
