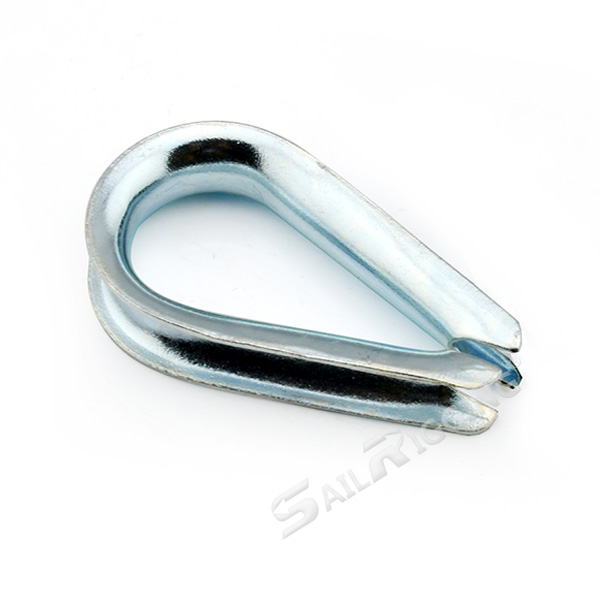

This is an American-style heavy-duty wire rope thimble, preventing wear and deformation of the wire rope eye. Compared to standard thimbles, it can withstand higher loads. It is manufactured using a stamping process, with an electroplated or hot-dip galvanized surface treatment. Available sizes range from 1/4 inch to 2-1/4 inches (0.25 inches โ 2.25 inches).
Feature:

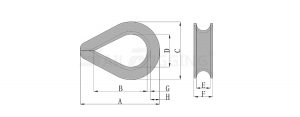

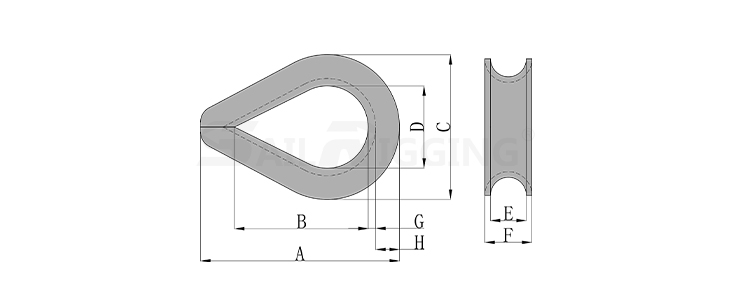

| Size | Dimensions(in) | Weight 100pcs (lbs) |
||||||||
| (in) | (mm) | A | B | C | D | E | F | G | H | |
| 1/8 | 3-4 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 | 3.50 |
| 3/16 | 5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 | 3.50 |
| 1/4 | 6-7 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 | 3.50 |
| 5/16 | 8 | 2.13 | 1.50 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 | 4.00 |
| 3/8 | 9-10 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 | 6.70 |
| 1/2 | 11-13 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 | 12.50 |
| 5/8 | 16 | 3.50 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 | 34.50 |
| 3/4 | 18-20 | 3.75 | 2.50 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 | 47.10 |
| 7/8 | 22 | 5.00 | 3.50 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 | 84.60 |
| 1 | 24-26 | 5.69 | 4.25 | 3.75 | 2.50 | 1.39 | 1.06 | 0.16 | 0.41 | 97.50 |
| 1 1/8-1 1/4 | 28-32 | 6.25 | 4.50 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.50 | 175.00 |
1.4 perfect forging lines โ our main products include standard rigging products and customized products, the annual production capacity is 3000T.
2.Track the whole production process from raw materials to finished products and strictly control the process flow.
3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.
4.Insisted on โcustomer-centricโ business philosophy, and strive to provide customers with high quality, efficient and personalized service.
5.Strictly control quality of every batch product, inspecting and test before shipment.
|
