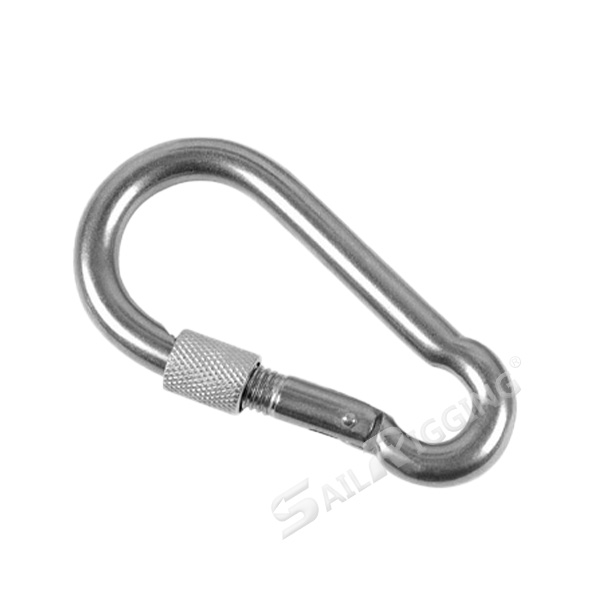

STAINLESS STEEL DIN5299D SNAP HOOK WITH SCREW

STAINLESS STEEL DIN5299D SNAP HOOK WITH SCREW

Feature:

  • Place of origin: Shandong,China
  • Brand Name: Sail Rigging
  • Material: Stainless steel
  • Surface: Polished
  • Size: From 5*50mm to 13*160mm
  • Packing: Carton
  • Certification: ISO, SGS,CE
  • Using for: Chain and wire rope accessories

share to:

Product

Description

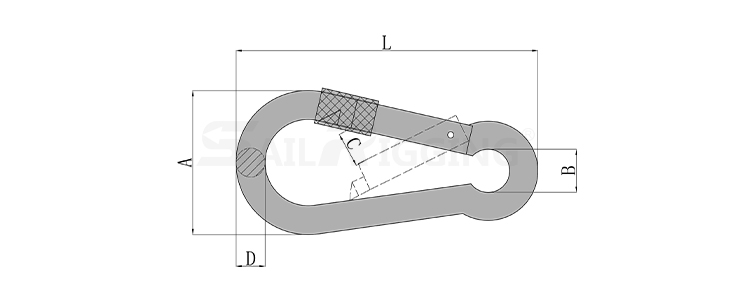

DIN5299D Snap Hook With Screw drg
Size(mm) Dimensions(mm) WLL
(lbs)
Weight 100pcs
(lbs)
A B C D L
5*50 25 8 7 5 50 80 4.41
6*60 30 9 8 6 60 100 7.10
7*70 35 10 8 7 70 140 11.03
8*80 40 12 9 8 80 200 16.70
9*90 45 12 10 9 90 250 21.62
10*100 50 15 11 10 100 280 35.30
11*120 57 18 16 11 120 400 46.34
12*140 67 20 19 12 140 500 62.69
13*160 74 22 25 13 160 700 80.98

OUR

ADVANTAGE

1.4 perfect forging lines – our main products include standard rigging products and customized products,the annual production capacity is 3000T.

2.Track the whole production process from raw materials to finished products and strictly control the process flow.

3.With an experienced R&D and design team of 5 people, we can make professional 3D modeling and product animation,provide you product and packaging customization.

4.Insisted on “customer-centric” business philosophy, and strive to provide customers with high quality, efficient and personalized service.

5.Strictly control quality of every batch product, inspecting and test before shipment.
